PVC 45 Degree Elbow Mold

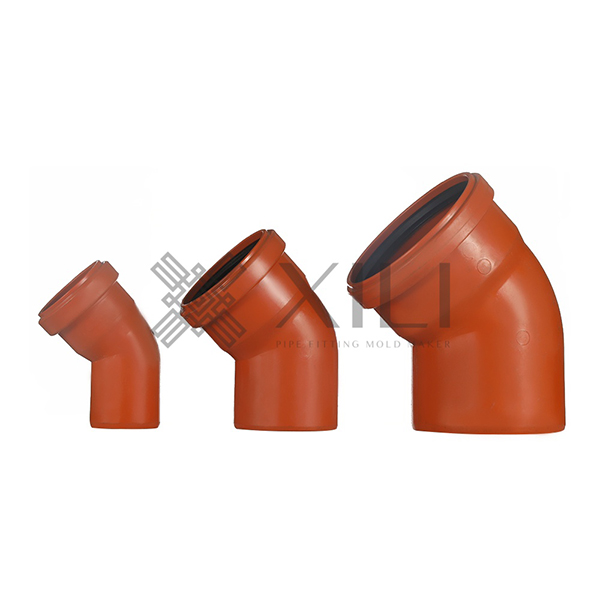

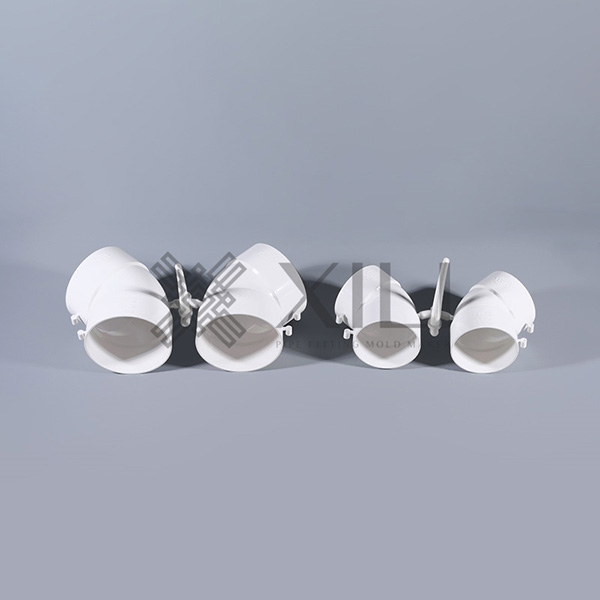

This PVC injection mold used to produce 45-degree elbow, bend fittings for piping systems. These fittings help change the pipe direction smoothly, reducing flow resistance in drain waste and vent system. Made from high-quality mold steel, the mold ensures durability, accuracy, and efficient production.
Products Categories
Get A Free Quote
PVC 45 degree elbow mold Technical Sheet
| Fitting Product Material | PVC |
| Product Size | 20-315mm |
| Mold Base | HASCO, Customized mold base,S50C/S45C/LKM |
| Mold Core/Cavity Steel Material | DIN 1.2316, S136, 4Cr13,etc |
| No. of Cavity | According to customer requirement like annual output, injection molding machine size |
| Injection Molding Machine | >>Need injection molding machine special for PVC products. Screw surface processed with hard chrome plating against corrisive. Independent-controlled blowers to control temparature. Enlarged the hydraulic charging motor. >>Matching injection molding machine size with mold cavity and mold size. |
| Mold Structure | Fully automatically |
| Runner | Cold runner / Hot runner |
| Cooling Water System | Unique cooling system for circular cores to improve efficiency. |
| Mold Design Sofeware | CAD, CAM, CAE, Pro-E,etc. |
| Mold Machining equipment | High speed CNC, standard CNC, EDM, Wire Cutting, Grinder, drilling machine |
| Mold Surface Finish | Texture (MT standard), high gloss polishing, Mirror finish etc |
| Lead Time | 60 days |
| Mold Life | 500000-1000000 shots according to your working environment |
| Standard | ASTM,GB/T,ISO4435,AS/NZS,DIN…etc |
| Capacity | 300 sets per year |
| Package & Delivery | Molds are packaged with wooden case |
| After sale service | Free spare parts. Technical support. Rework support. |
Get Free Quote of 45 degree elbow fitting mold
Contact us for more details. We are available to provide a complete turnkey solution.
