90 Degree Ebow Mold for Pressure Fittings

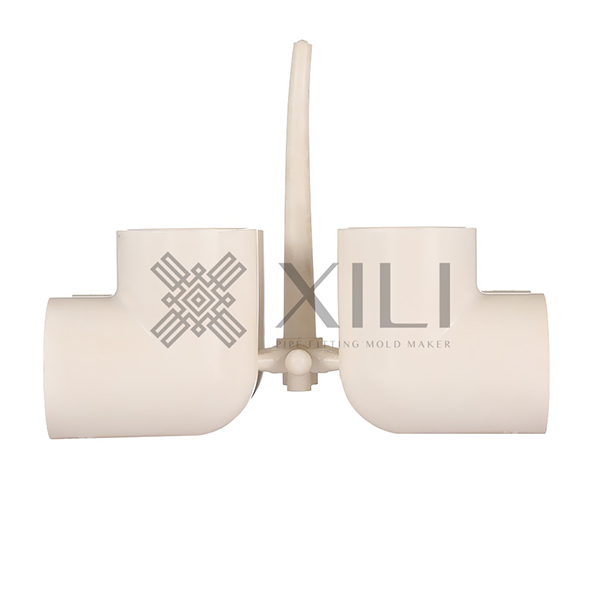

A robust injection mold used to produce 90-degree elbow fittings for high-pressure applications. The mold is used to manufacture high quality PVC Elbows for water supply system. We make molds for different sizes elbows. These elbows facilitate smooth directional changes in piping systems while withstanding significant pressure, ensuring durability and performance.
Products Categories
Get A Free Quote
PVC Pipe 90 elbow mold Technical Sheet
| Fitting Product Material | PVC |
| Product Size | 20-315mm |
| Mold Base | HASCO, Customized mold base,S50C/S45C/LKM |
| Mold Core/Cavity Steel Material | DIN 1.2316, S136, 4Cr13,etc |
| No. of Cavity | According to customer requirement like annual output, injection molding machine size |
| Injection Molding Machine | >>Need injection molding machine special for PVC products. Screw surface processed with hard chrome plating against corrisive. Independent-controlled blowers to control temparature. Enlarged the hydraulic charging motor. >>Matching injection molding machine size with mold cavity and mold size. |
| Mold Structure | Fully automatically |
| Runner | Cold runner / Hot runner |
| Cooling Water System | Unique cooling system for circular cores to improve efficiency. |
| Mold Design Sofeware | CAD, CAM, CAE, Pro-E,etc. |
| Mold Machining equipment | High speed CNC, standard CNC, EDM, Wire Cutting, Grinder, drilling machine |
| Mold Surface Finish | Texture (MT standard), high gloss polishing, Mirror finish etc |
| Lead Time | 60 days |
| Mold Life | 500000-1000000 shots according to your working environment |
| Standard | ASTM,GB/T,ISO4435,AS/NZS,DIN…etc |
| Capacity | 300 sets per year |
| Package & Delivery | Molds are packaged with wooden case |
| After sale service | Free spare parts. Technical support. Rework support. |
Get Free Quote of PVC Pipe Elbow mold
Contact us for more details. We are available to provide a complete turnkey solution.
